Item: 04-10289 Model: P4/AAAPP/TNU/TF/STF Series: Pro-Flo Wetted material: Aluminum Diaphragm material: PTFE Nominal fluid port size: 1.5-inch Construction: Clamped Connection standard: NPT
WILDEN / PRO-FLO SERIES

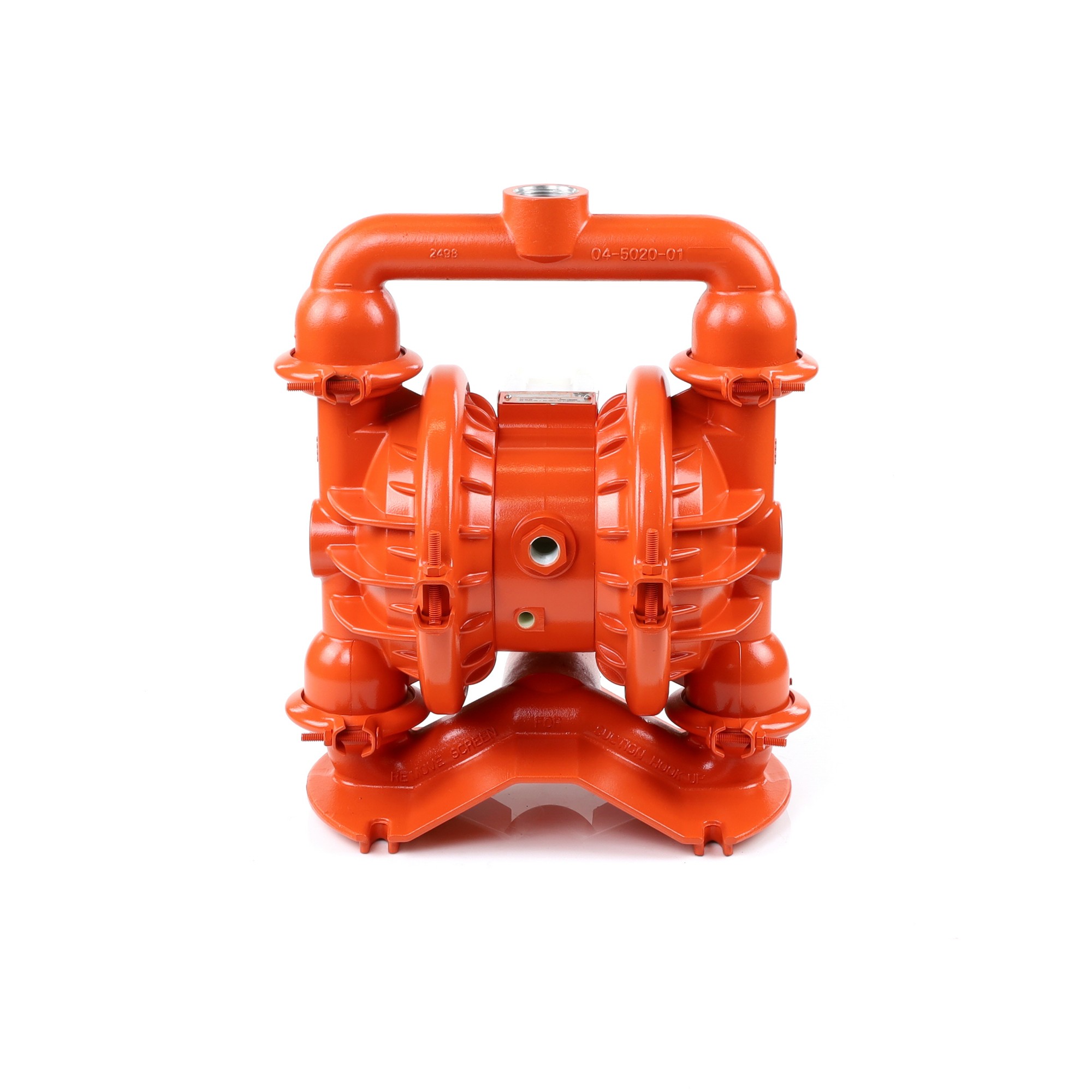

This 1.5-inch Pro-Flo air-operated double-diaphragm pump uses aluminum wetted housing and PTFE diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
P4/AAAPP/TNU/TF/STF
FLUID PORT SIZE
1.5-inch NPT
MAXIMUM FLOW
≈ 295.3 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 04-10289 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1.5 in |
| Construction | Clamped |
| Wetted housing | Aluminum |
| Diaphragm material | PTFE |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Connection standard | NPT |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | CENTER HORIZONTAL BACK / CENTER VERTICAL |
| Maximum flow | 78 US gpm (approximately 295.3 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Listed dry suction lift | 12 ft (approximately 3.66 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 37 lb (approximately 16.78 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Aluminum |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | DIAPHRAGM DEPENDENT |
| Muffler | Aluminum |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
Quote 04-10289 and P4/AAAPP/TNU/TF/STF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
