Item: 04-13297 Model: PS4/PPAPP/ZWS/WF/PTV/0504 Series: Pro-Flo Shift Wetted material: Polypropylene Diaphragm material: Santoprene® Nominal model size: 1.5-inch Construction: Clamped Actual fluid inlet size: 1.5 in Actual fluid discharge size: 1.5 in
WILDEN / PRO-FLO SHIFT SERIES

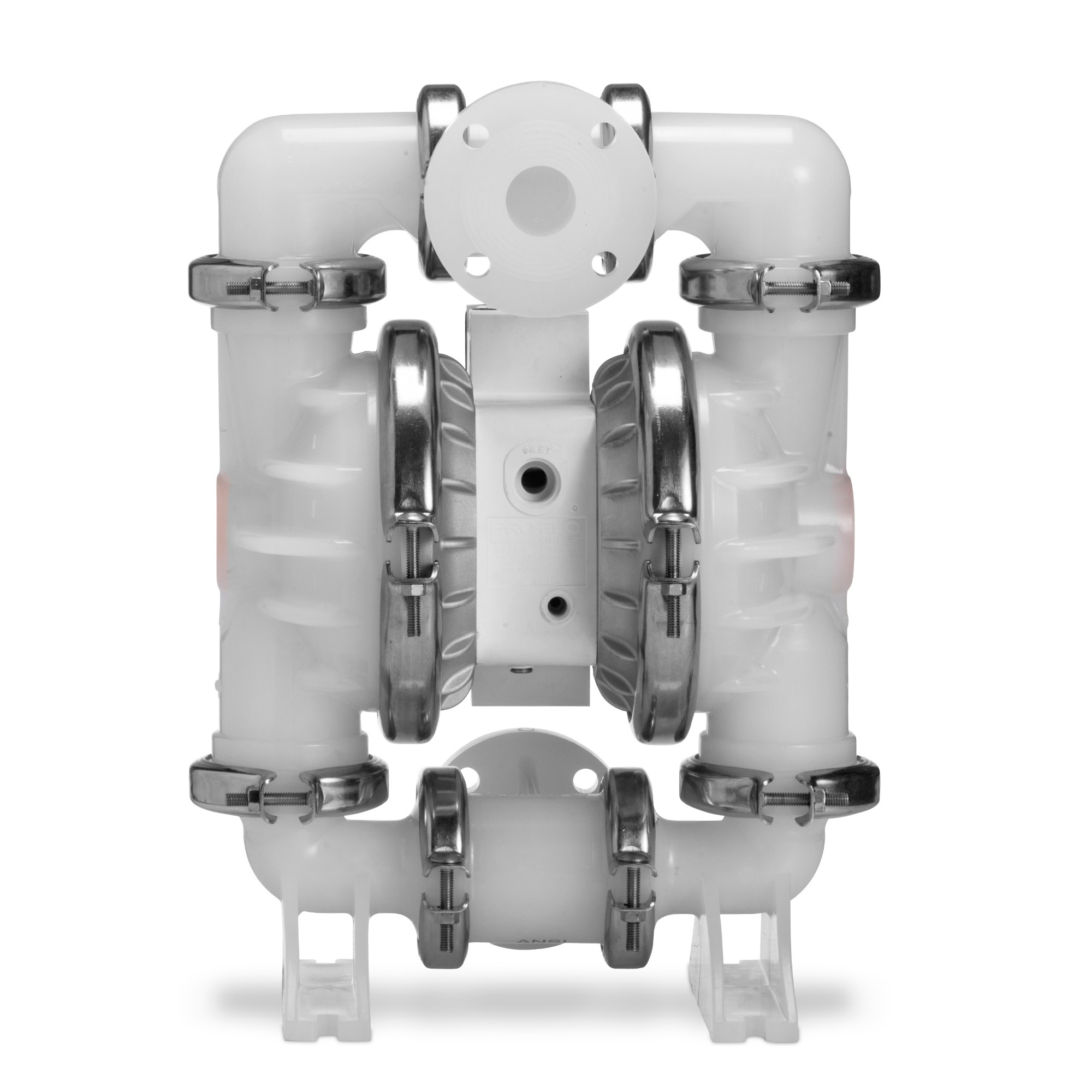

This 1.5-inch Pro-Flo Shift air-operated double-diaphragm pump uses polypropylene wetted housing and Santoprene® diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
PS4/PPAPP/ZWS/WF/PTV/0504
NOMINAL MODEL SIZE
1.5-inch
MAXIMUM FLOW
≈ 378.5 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 04-13297 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal model size | 1.5 in |
| Actual fluid inlet size | 1.5 in |
| Actual fluid discharge size | 1.5 in |
| Construction | Clamped |
| Wetted housing | Polypropylene |
| Diaphragm material | Santoprene® |
| Diaphragm design | EZ-INSTALL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Santoprene® |
| Valve seat material | Polypropylene |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Swivel / Center Swivel |
| Maximum flow | 100 US gpm (approximately 378.5 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.18 in (approximately 4.6 mm) |
| Listed dry suction lift | 20.4 ft (approximately 6.22 m) |
| Listed wet suction lift | 27.2 ft (approximately 8.29 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 40.2 lb (approximately 18.23 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Polypropylene |
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Special option code | 0504 |
AIR REPAIR KIT
Air distribution service kit matched to this 1.5-inch Pro-Flo Shift PS4 configuration. Confirm the complete pump code when ordering.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 04-13297 and PS4/PPAPP/ZWS/WF/PTV/0504, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
