Item: 04-13867 Model: P420/WSAPP/TNU/TF/MTF Series: Pro-Flo Wetted material: IRON Diaphragm material: PTFE Nominal fluid port size: 1.5-inch Construction: Bolted Connection standard: NPT
WILDEN / PRO-FLO SERIES

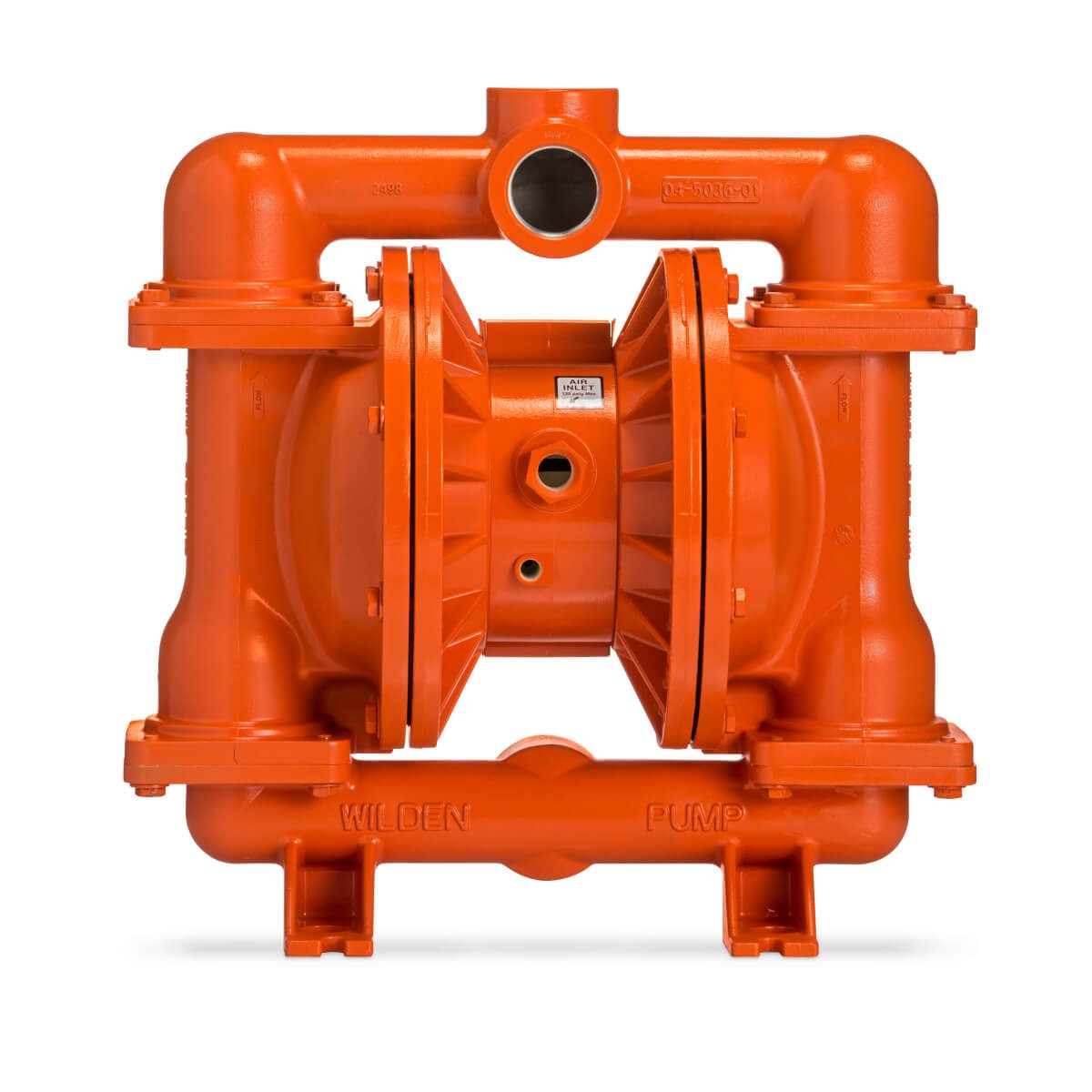

This 1.5-inch Pro-Flo air-operated double-diaphragm pump uses iron wetted housing and PTFE diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
P420/WSAPP/TNU/TF/MTF
FLUID PORT SIZE
1.5-inch NPT
MAXIMUM FLOW
≈ 340.7 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 04-13867 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1.5 in |
| Construction | Bolted |
| Wetted housing | IRON |
| Diaphragm material | PTFE |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | MILD STEEL |
| Connection standard | NPT |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | CENTER HORIZONTAL BACK / CENTER HORIZONTAL FRONT |
| Maximum flow | 90 US gpm (approximately 340.7 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
| Listed dry suction lift | 15.9 ft (approximately 4.85 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | DIAPHRAGM DEPENDENT |
| Muffler | Aluminum |
| Air inlet connection | FNPT |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
Quote 04-13867 and P420/WSAPP/TNU/TF/MTF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
