Item: 04-13919 Model: P420/AAAPP/TWS/TF/ATF/0652 Series: Pro-Flo Wetted material: Aluminum Diaphragm material: PTFE / Santoprene® Nominal fluid port size: 1.5-inch Construction: Bolted Connection standard: BSPT
WILDEN / PRO-FLO SERIES

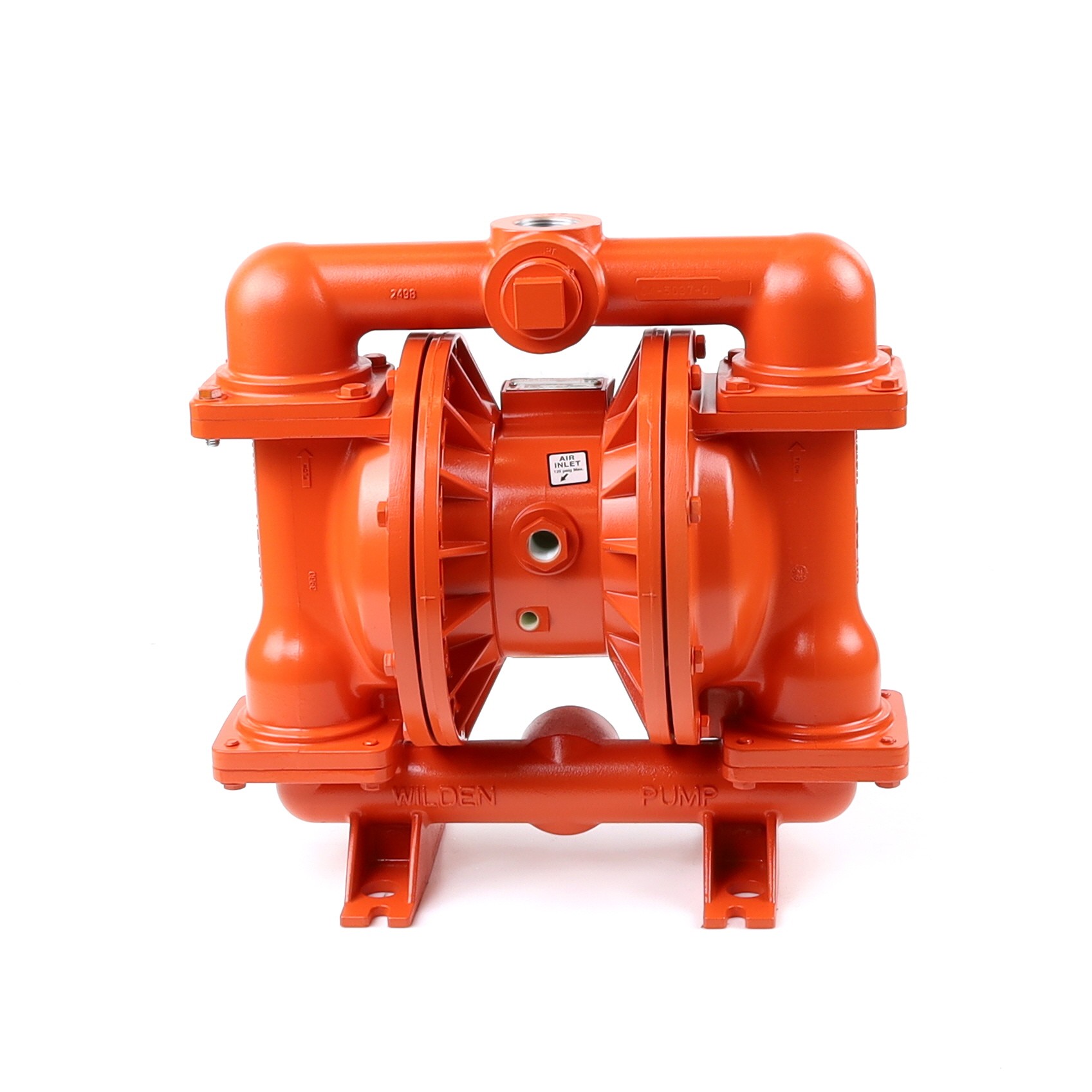

This 1.5-inch Pro-Flo air-operated double-diaphragm pump uses aluminum wetted housing and PTFE / Santoprene® diaphragms. Its bolted construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
P420/AAAPP/TWS/TF/ATF/0652
FLUID PORT SIZE
1.5-inch BSPT
MAXIMUM FLOW
≈ 473.2 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 04-13919 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1.5 in |
| Construction | Bolted |
| Wetted housing | Aluminum |
| Diaphragm material | PTFE / Santoprene® |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | PTFE |
| Valve seat material | Aluminum |
| Connection standard | BSPT |
| Sub-series | FIT SERIES |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Horizontal Back / Center Vertical |
| Maximum flow | 125 US gpm (approximately 473.2 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.25 in (approximately 6.3 mm) |
| Listed dry suction lift | 17 ft (approximately 5.18 m) |
| Listed wet suction lift | 29.5 ft (approximately 8.99 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Aluminum |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Diaphragm Dependent |
| Muffler | Aluminum |
| Special option code | 0652 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1.5-inch Pro-Flo P420 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1.5-inch bolted pump with PTFE / Santoprene® diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 04-13919 and P420/AAAPP/TWS/TF/ATF/0652, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
