Item: 04-6959 Model: P4/SSAPP/EPS/EP/EP Series: Pro-Flo Wetted material: Stainless steel Diaphragm material: EPDM Nominal fluid port size: 1.5-inch Construction: Clamped Connection standard: NPT
WILDEN / PRO-FLO SERIES

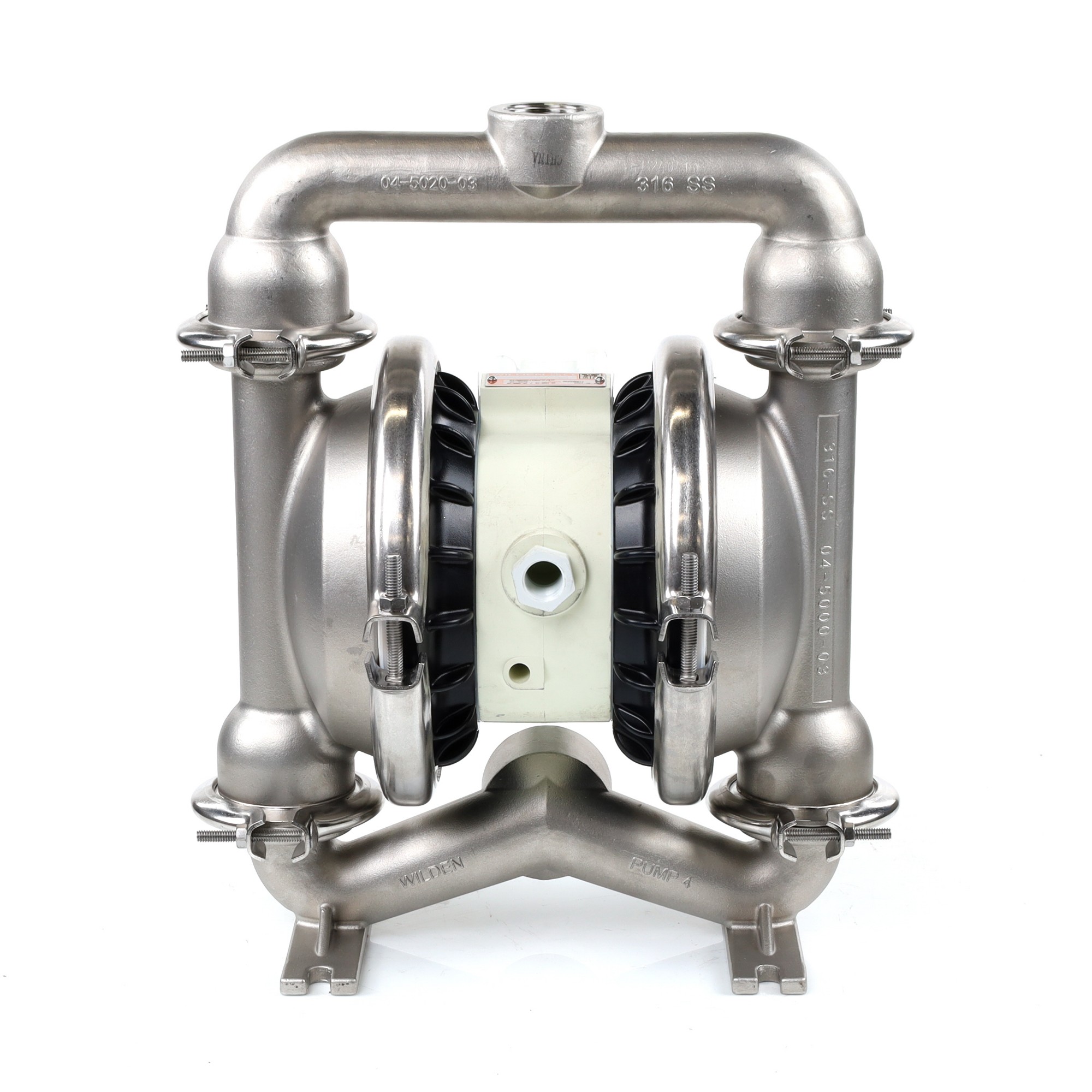

This 1.5-inch Pro-Flo air-operated double-diaphragm pump uses stainless steel wetted housing and EPDM diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
P4/SSAPP/EPS/EP/EP
FLUID PORT SIZE
1.5-inch NPT
MAXIMUM FLOW
≈ 287.7 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 04-6959 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1.5 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | EPDM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | EPDM |
| Valve seat material | EPDM |
| Connection standard | NPT |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | CENTER HORIZONTAL BACK / CENTER VERTICAL |
| Maximum flow | 76 US gpm (approximately 287.7 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Listed dry suction lift | 19 ft (approximately 5.79 m) |
| Listed operating temperature | 32–175 °F (approximately 0.0–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 55 lb (approximately 24.95 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | EPDM |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
Quote 04-6959 and P4/SSAPP/EPS/EP/EP, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
