Item: S01-0003 Model: TZ1/AAAAB/WFS/WF/AWF Series: Turbo-Flo Wetted material: Aluminum Diaphragm material: Santoprene® Nominal fluid port size: 1/2-inch Construction: Clamped
WILDEN / TURBO-FLO SERIES

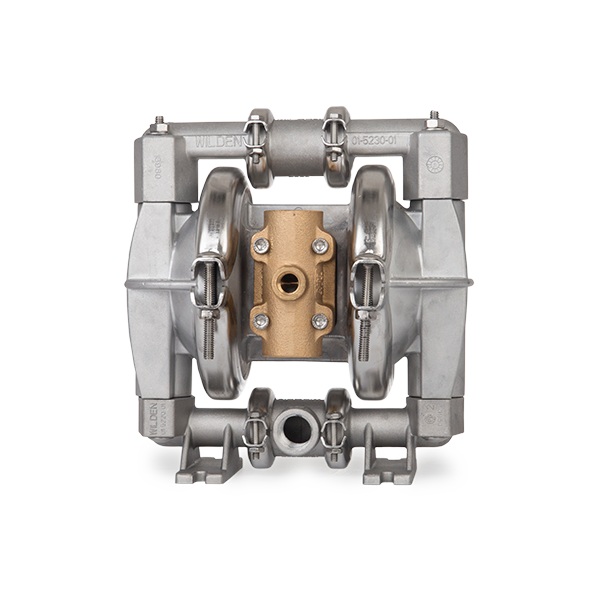

This 1/2-inch Turbo-Flo air-operated double-diaphragm pump uses aluminum wetted housing and Santoprene® diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
TZ1/AAAAB/WFS/WF/AWF
FLUID PORT SIZE
1/2-inch
| Brand / item number | WILDEN / S01-0003 |
|---|---|
| Pump series | Turbo-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Aluminum |
| Diaphragm material | Santoprene® |
| Check ball material | Santoprene® |
| Valve seat material | Aluminum |
| Outer pistons | Aluminum |
|---|---|
| Wetted O-rings / gaskets | SANTOPRENE |
Quote S01-0003 and TZ1/AAAAB/WFS/WF/AWF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
