Item: S01-0055 Model: TZ1/PPAAB/TNU/TF/KTF Series: Turbo-Flo Wetted material: Polypropylene Diaphragm material: PTFE Nominal fluid port size: 1/2-inch Construction: Clamped
WILDEN / TURBO-FLO SERIES

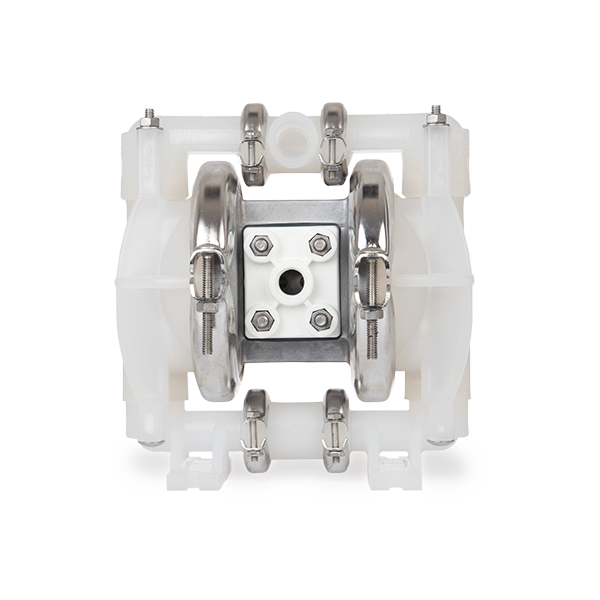

This 1/2-inch Turbo-Flo air-operated double-diaphragm pump uses polypropylene wetted housing and PTFE diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
TZ1/PPAAB/TNU/TF/KTF
FLUID PORT SIZE
1/2-inch
| Brand / item number | WILDEN / S01-0055 |
|---|---|
| Pump series | Turbo-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Polypropylene |
| Diaphragm material | PTFE |
| Check ball material | PTFE |
| Valve seat material | PVDF |
| Outer pistons | Polypropylene |
|---|---|
| Wetted O-rings / gaskets | PTFE |
Quote S01-0055 and TZ1/PPAAB/TNU/TF/KTF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
