Item: S02-0034 Model: TZ2/PKAAB/TNU/TF/PTV/0400 Series: Turbo-Flo Z Wetted material: Polypropylene Diaphragm material: PTFE Nominal fluid port size: 1-inch Construction: Clamped
WILDEN / TURBO-FLO Z SERIES

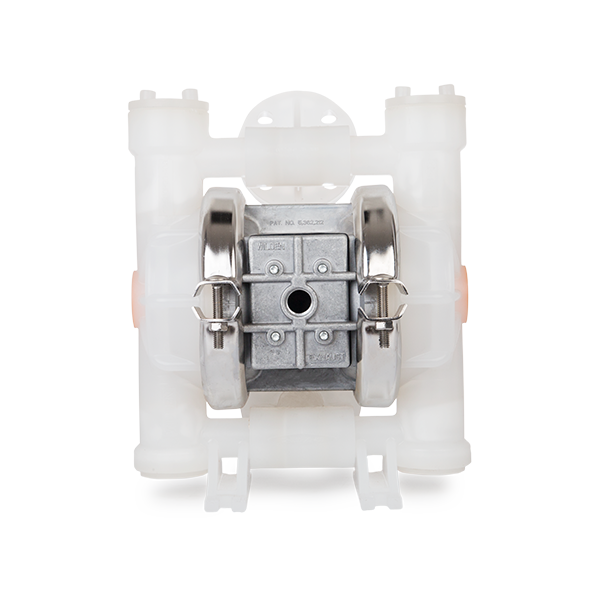

This 1-inch Turbo-Flo Z air-operated double-diaphragm pump uses polypropylene wetted housing and PTFE diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
TZ2/PKAAB/TNU/TF/PTV/0400
FLUID PORT SIZE
1-inch
| Brand / item number | WILDEN / S02-0034 |
|---|---|
| Pump series | Turbo-Flo Z |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | Polypropylene |
| Diaphragm material | PTFE |
| Check ball material | PTFE |
| Valve seat material | Polypropylene |
| Outer pistons | PVDF |
|---|---|
| Wetted O-rings / gaskets | PTFE-encapsulated FKM |
| Special option code | 0400 |
Quote S02-0034 and TZ2/PKAAB/TNU/TF/PTV/0400, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
