Item: S02-0104 Model: XPR260/SSAAA/TNU/TF/STF Series: Pro-Flo R Wetted material: Stainless steel Diaphragm material: PTFE Nominal fluid port size: 1-inch Construction: Bolted
WILDEN / PRO-FLO R SERIES

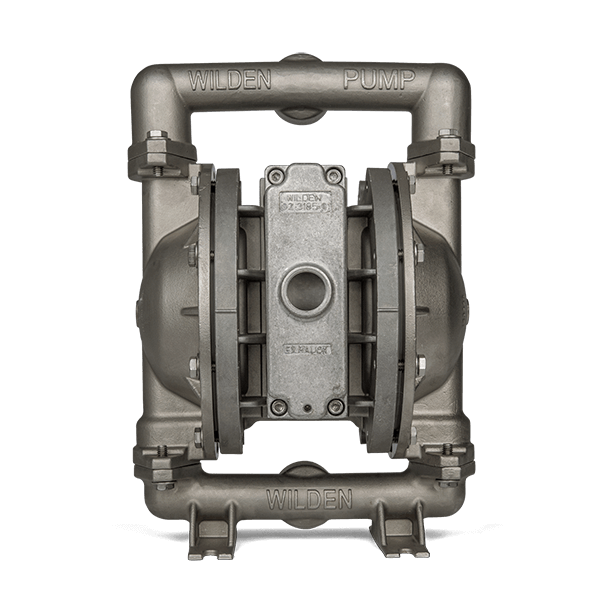

This 1-inch Pro-Flo R air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE diaphragms. Its bolted construction is identified by the complete ordering code below.
Complete model
XPR260/SSAAA/TNU/TF/STF
FLUID PORT SIZE
1-inch
| Brand / item number | WILDEN / S02-0104 |
|---|---|
| Pump series | Pro-Flo R |
| Nominal fluid port size | 1 in |
| Construction | Bolted |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Outer pistons | Stainless steel |
|---|---|
| Wetted O-rings / gaskets | PTFE |
AIR REPAIR KIT
Air distribution service kit matched to this 1-inch Pro-Flo R XPR260 configuration. Confirm the complete pump code when ordering.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote S02-0104 and XPR260/SSAAA/TNU/TF/STF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
