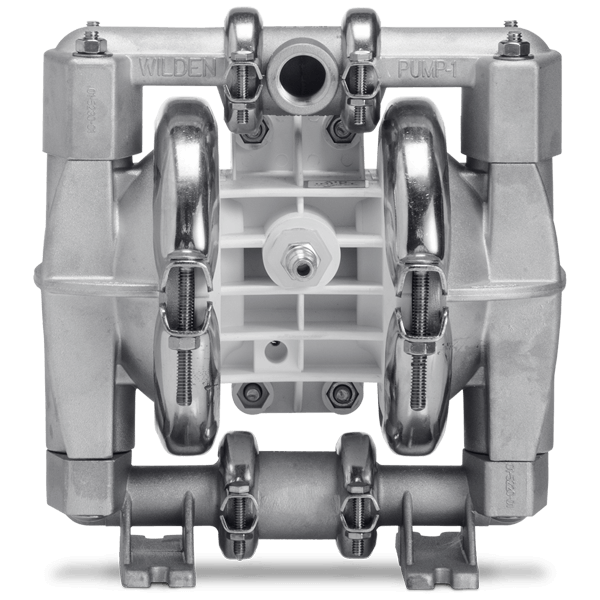

WILDEN metal 1/2 inch pneumatic diaphragm pump, 01-10786 P1/AAPPP/FSS/PU/SPU,Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time.
1/4" FNPT
13 mm (1/2")
13 mm (1/2")
NPT/BSPT (Threaded)
Rubber –5.8 m (19.0') Dry, 9.5 m (31.0') Wet
TPE – 5.2 m (17.0') Dry, 9.5 m (31.0') Wet
PTFE – 4.9 m (16.0') Dry, 9.5 m (31.0') Wet
Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Metal Manual.
Note: Additional performance curves can be found in the P1 Metal Manual.
1/4" FNPT
13 mm (1/2")
13 mm (1/2")
NPT/BSPT (Threaded)
Rubber – 58.7 lpm (15.5 gpm)
TPE – 58.3 lpm (15.4 gpm)
PTFE – 54.4 lpm (14.4 gpm)
8.6 bar (125 psi)
1.59 mm (1/16'')
Rubber –5.8 m (19.0') Dry, 9.5 m (31.0') Wet
TPE – 5.2 m (17.0') Dry, 9.5 m (31.0') Wet
PTFE – 4.9 m (16.0') Dry, 9.5 m (31.0') Wet
Rubber – 0.11 L (0.029 gal)
TPE – 0.11 L (0.029 gal)
PTFE – 0.09 L (0.025 gal)
| Material | Ship Weight |
|---|---|
| Aluminum | 6 kg (13 lb) |
| Stainless Steel | 9.2 kg (20 lb) |
| Description | Material |
|---|---|
| Center Section | Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal |
| Air Valve | Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal |
Rubber – 58.7 lpm (15.5 gpm)
TPE – 58.3 lpm (15.4 gpm)
PTFE – 54.4 lpm (14.4 gpm)
8.6 bar (125 psi)
1.59 mm (1/16'')
Rubber – 0.11 L (0.029 gal)
TPE – 0.11 L (0.029 gal)
PTFE – 0.09 L (0.025 gal)
Other models are recommended：
Numbering | Description | Numbering | Description |
01-2669 01-2668 01-10099 01-10949 01-2670 01-2667 01-10078 01-10725 01-11163 01-10079 01-2653 01-2656 01-10376 01-10905 01-10664 01-11152 01-10073 01-10253 01-10786 01-10973 01-10731 01-2652 01-2657 01-2689 01-10491 01-10132 01-2676 01-2693 01-2677 01-10221 01-10088 01-10686 01-10864 01-2659 01-2683 01-11065 01-10292 01-2692 01-10328 01-10459 01-10230 01-10206 01-10998 01-10087 01-10405 01-2655 01-11177 01-11148 01-2699 01-10561 01-10869 | P1/AALLL/BNS/BN/ABN P1/AALLL/BNS/BN/ABN/0014 P1/AALLL/BNS/VT/ABN/0014 P1/AALLL/BNS/VT/ABN/0246 P1/AALLL/TNU/TF/ATF P1/AALLL/TNU/TF/ATF/0014 P1/AALLL/VTS/VT/ATF P1/AALLL/VTS/VT/ATF/0014 P1/AALLL/WFS/TF/AWF/0014 P1/AALLL/WFS/WF/AWF P1/AAPPP/BNS/BN/ABN P1/AAPPP/BNS/BN/ABN/0014 P1/AAPPP/BNS/BN/SBN P1/AAPPP/BNS/TF/SBN/0014 P1/AAPPP/EPS/EP/AEP P1/AAPPP/EPS/EP/AEP/0014 P1/AAPPP/FSS/FS/AFS P1/AAPPP/FSS/FS/AFS/0014 P1/AAPPP/FSS/PU/SPU P1/AAPPP/FSS/TF/AFS P1/AAPPP/TEU/TF/ATF P1/AAPPP/TNU/TF/ATF P1/AAPPP/TNU/TF/ATF/0014 P1/AAPPP/VTS/VT/ATF P1/AAPPP/VTS/VT/ATF/0014 P1/AAPPP/WFS/TF/AWF P1/AAPPP/WFS/WF/AWF P1/AAPPP/WFS/WF/AWF/0014 P1/AAPPP/WFS/WF/SWF P1/AAPPP/WFS/WF/SWF/0014 P1/KKPPP/BNS/BN/KBN P1/KKPPP/FSS/FS/KTV P1/KKPPP/TEU/TF/KTV P1/KKPPP/TNU/TF/KTV P1/KKPPP/TNU/TF/KTV/0502 P1/KKPPP/TNU/TF/KTV/0635 P1/KKPPP/TNU/VT/KTV P1/KKPPP/VTS/VT/KTV P1/KKPPP/VTS/VT/VT P1/KKPPP/WFS/TF/KTV P1/KKPPP/WFS/TF/KWF P1/KKPPP/WFS/WF/KTV P1/KKPPP/WFS/WF/KTV/0502 P1/KKPPP/WFS/WF/KWF P1/KZPPP/TNL/TF/KTV P1/PPPPP/BNS/BN/KBN P1/PPPPP/BNS/BN/KBN/0490 P1/PPPPP/BNS/BN/KWF P1/PPPPP/BNS/TF/KBN P1/PPPPP/EPS/EP/KTV P1/PPPPP/EPS/TF/KTV | 01-10070 01-10069 01-2658 01-10720 01-2654 01-10301 01-11108 01-2679 01-10697 01-10876 01-2682 01-10218 01-10114 01-10303 01-2686 01-10296 01-2664 01-10896 01-2673 01-0110 01-10404 01-2666 01-2665 01-10909 01-10191 01-10074 01-10216 01-10891 01-10663 01-10733 01-2680 01-10349 01-2674 01-10068 01-10837 01-10897 01-2662 01-2663 01-10445 01-10236 01-10844 01-10966 01-11261 01-10181 01-10779 01-10495 01-2690 01-10176 01-2685 01-10147 | P1/PPPPP/FSS/FS/KFS P1/PPPPP/FSS/TF/KFS P1/PPPPP/PUS/PU/KPU P1/PPPPP/TEU/TF/KTV P1/PPPPP/TNU/TF/KTV P1/PPPPP/TNU/TF/KTV/0480 P1/PPPPP/TNU/TF/KTV/0490 P1/PPPPP/TNU/TF/KTV/0502 P1/PPPPP/TNU/TF/KWF P1/PPPPP/TNU/TF/VT P1/PPPPP/TNU/VT/KTV/0502 P1/PPPPP/TVU/TF/KTV P1/PPPPP/VTS/TF/KTV P1/PPPPP/VTS/VT/KTV P1/PPPPP/VTS/VT/VT P1/PPPPP/WFS/TF/KTV P1/PPPPP/WFS/TF/KWF P1/PPPPP/WFS/TF/KWF/0490 P1/PPPPP/WFS/WF/KTV P1/PPPPP/WFS/WF/KWF P1/PZPPP/TNL/TF/KTV P1/SSLLL/TNU/TF/STF P1/SSLLL/TNU/TF/STF/0014 P1/SSLLL/TSU/TF/STF/0070 P1/SSLLL/WFS/WF/SWF/0014 P1/SSPPP/BNS/BN/SBN P1/SSPPP/BNS/BN/SBN/0014 P1/SSPPP/BNS/TF/STF P1/SSPPP/EPS/EP/SEP P1/SSPPP/EPS/EP/SEP/0014 P1/SSPPP/FSS/FS/SFS P1/SSPPP/FSS/FS/SFS/0014 P1/SSPPP/FSS/FS/SFS/0070 P1/SSPPP/FSS/TF/SFS/0070 P1/SSPPP/TEU/TF/STF P1/SSPPP/TEU/TF/STF/0070 P1/SSPPP/TNU/TF/STF P1/SSPPP/TNU/TF/STF/0014 P1/SSPPP/TNU/TF/STF/0080 P1/SSPPP/TNU/TF/STF/0100 P1/SSPPP/TSU/TF/STF P1/SSPPP/TSU/TF/STF/0070 P1/SSPPP/TSU/TF/STF/0079 P1/SSPPP/TVU/TF/STF P1/SSPPP/TVU/TF/STF/0079 P1/SSPPP/VTS/TF/STF P1/SSPPP/VTS/VT/STF P1/SSPPP/VTS/VT/STF/0014 P1/SSPPP/WFS/WF/SWF P1/SSPPP/WFS/WF/SWF/0014 |
