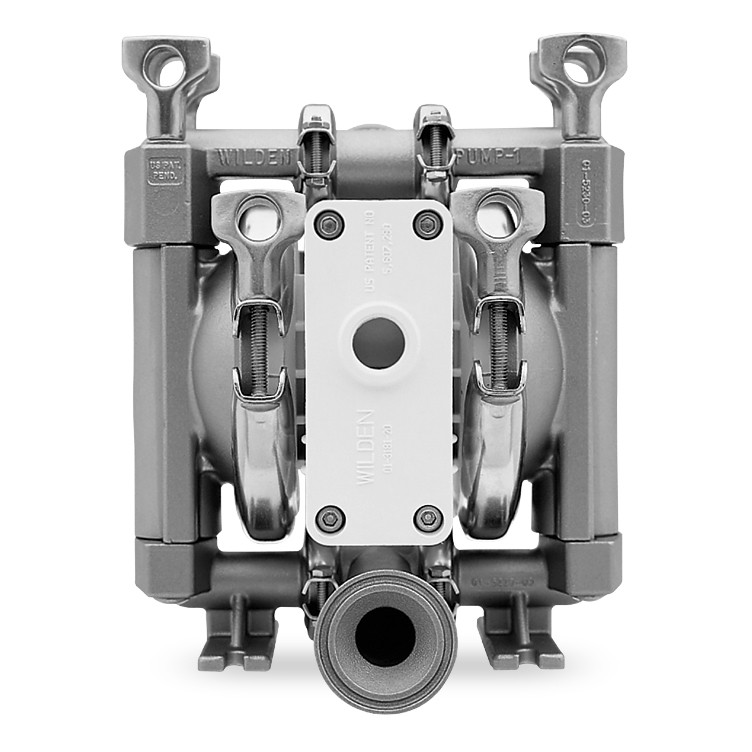

Item: 01-10753 Model: PX1/SSAAA/FSS/FS/SFS/0070 Series: Saniflo FDA Wetted material: Stainless steel Diaphragm material: Hytrel® Nominal fluid port size: 1/2-inch Construction: Clamped
WILDEN / SANIFLO FDA SERIES
This 1/2-inch Saniflo FDA air-operated double-diaphragm pump uses stainless steel wetted housing and Hytrel® diaphragms. Its clamped construction is identified by the complete ordering code below.
Complete model
PX1/SSAAA/FSS/FS/SFS/0070
FLUID PORT SIZE
1/2-inch
| Brand / item number | WILDEN / 01-10753 |
|---|---|
| Pump series | Saniflo FDA |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | Hytrel® |
| Check ball material | Hytrel® |
| Valve seat material | Stainless steel |
| Outer pistons | Stainless steel |
|---|---|
| Wetted O-rings / gaskets | HYTREL |
| Special option code | 0070 |
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Saniflo FDA PX1 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1/2-inch clamped pump with Hytrel® diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-10753 and PX1/SSAAA/FSS/FS/SFS/0070, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
