Item: 01-10982 Model: A1P/PPPPP/WFS/TF/KWF/0150 Series: Accu-Flo Wetted material: Polypropylene Diaphragm material: Santoprene® Nominal fluid port size: 1/2-inch Construction: Clamped Connection standard: NPT
WILDEN / ACCU-FLO SERIES

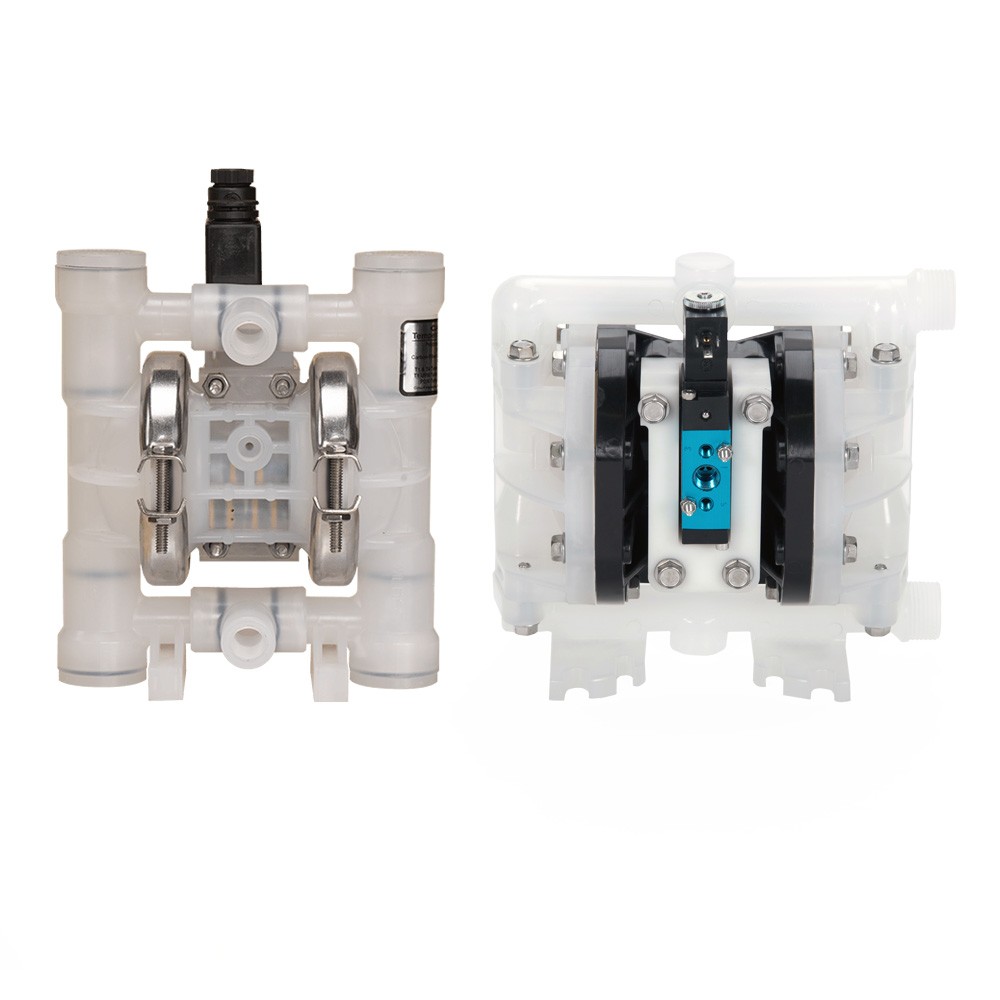

This 1/2-inch Accu-Flo air-operated double-diaphragm pump uses polypropylene wetted housing and Santoprene® diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
A1P/PPPPP/WFS/TF/KWF/0150
FLUID PORT SIZE
1/2-inch NPT
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-10982 |
|---|---|
| Pump series | Accu-Flo |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Polypropylene |
| Diaphragm material | Santoprene® |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Full-Stroke |
| Check ball material | PTFE |
| Valve seat material | PVDF |
| Connection standard | NPT |
| Inlet / discharge orientation | CENTER SWIVEL / CENTER SWIVEL |
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
|---|---|
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Polypropylene |
| Wetted O-rings / gaskets | SANTOPRENE |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Air inlet connection | 1/4" FNPT |
| Special option code | 0150 |
Quote 01-10982 and A1P/PPPPP/WFS/TF/KWF/0150, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
