Item: 01-11338 Model: XPS1/SSAAA/TVU/TF/STF Series: Pro-Flo Shift Wetted material: Stainless steel Diaphragm material: PTFE Nominal fluid port size: 1/2-inch Construction: Clamped Connection standard: NPT
WILDEN / PRO-FLO SHIFT SERIES

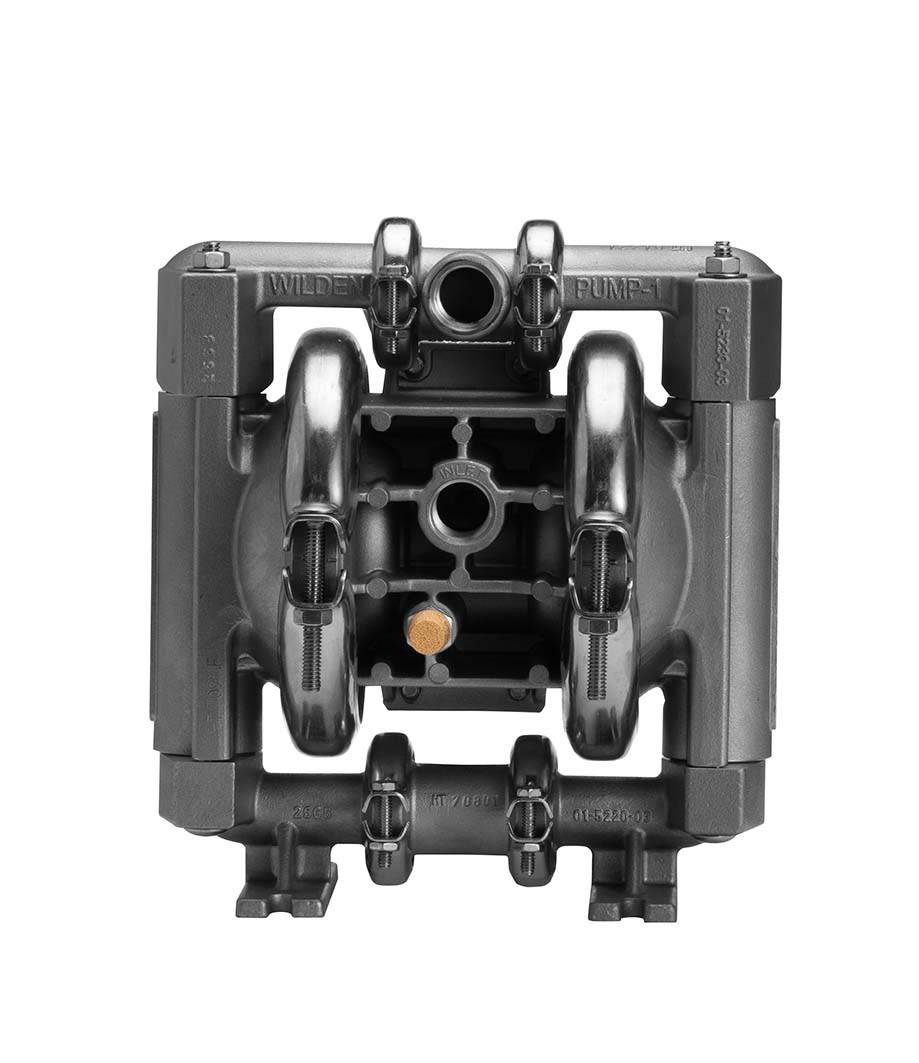

This 1/2-inch Pro-Flo Shift air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the NPT standard.
Complete model
XPS1/SSAAA/TVU/TF/STF
FLUID PORT SIZE
1/2-inch NPT
MAXIMUM FLOW
≈ 59.8 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 01-11338 |
|---|---|
| Pump series | Pro-Flo Shift |
| Nominal fluid port size | 1/2 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Connection standard | NPT |
| Inlet / discharge orientation | CENTER SWIVEL / CENTER SWIVEL |
| Maximum flow | 15.8 US gpm (approximately 59.8 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Maximum solids diameter | 0.06 in (approximately 1.5 mm) |
| Listed dry suction lift | 14.2 ft (approximately 4.33 m) |
| Listed operating temperature | 40–220 °F (approximately 4.4–104.4 °C) |
| Self-priming | Yes |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | ALUMINUM |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Air inlet connection | 1/2" NPT |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1/2-inch Pro-Flo Shift XPS1 configuration. Confirm the complete pump code when ordering.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 01-11338 and XPS1/SSAAA/TVU/TF/STF, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
