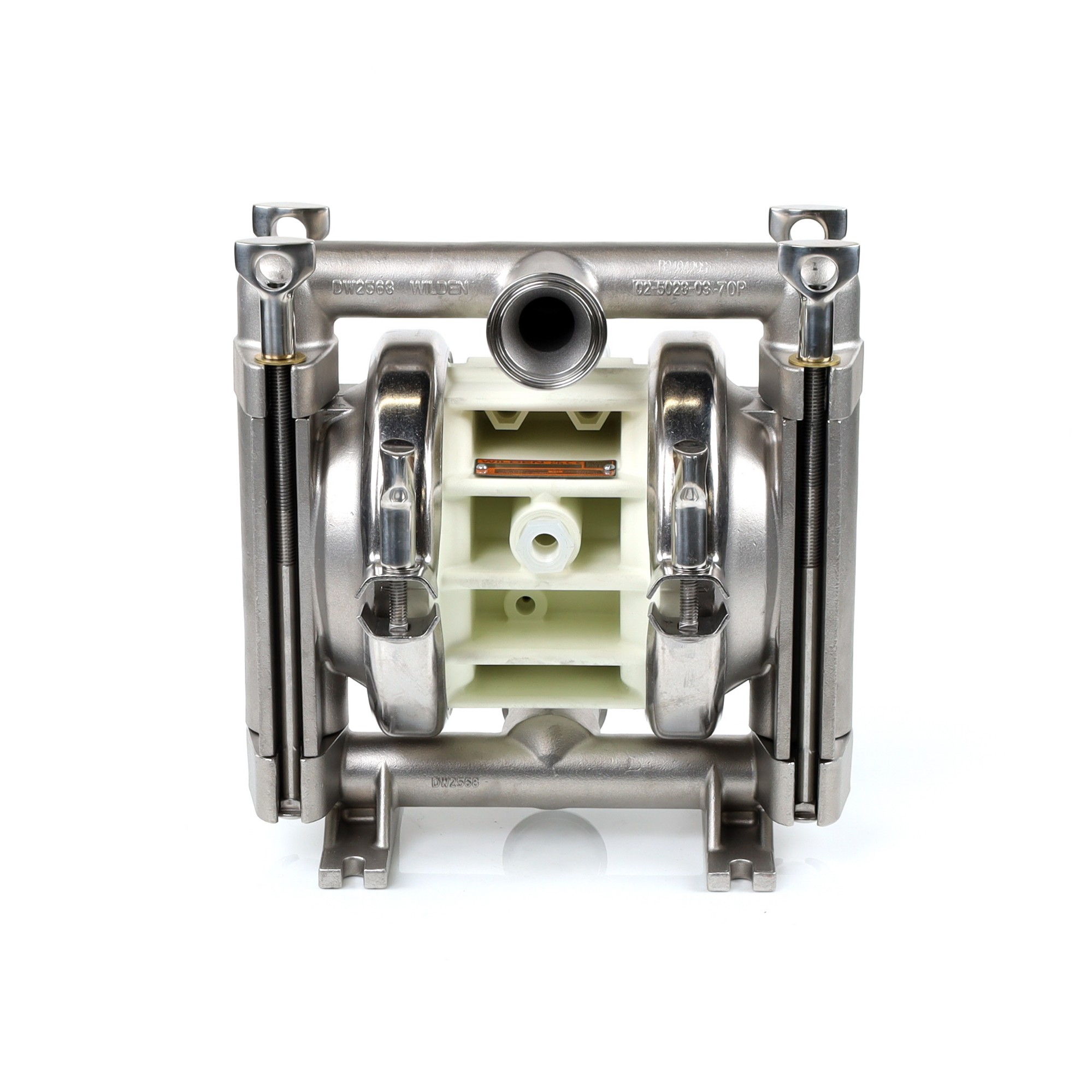

Item: 02-12468 Model: P2/SZPPP/FWL/FS/SFS/2070 Series: Pro-Flo Wetted material: Stainless steel Diaphragm material: Santoprene® Nominal fluid port size: 1-inch Construction: Clamped Connection standard: TRI-CLAMP
WILDEN / PRO-FLO SERIES
This 1-inch Pro-Flo air-operated double-diaphragm pump uses stainless steel wetted housing and Santoprene® diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the TRI-CLAMP standard.
Complete model
P2/SZPPP/FWL/FS/SFS/2070
FLUID PORT SIZE
1-inch TRI-CLAMP
MAXIMUM FLOW
≈ 171.1 L/min
MAXIMUM PRESSURE
120 psig
| Brand / item number | WILDEN / 02-12468 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | Santoprene® |
| Diaphragm design | IPD SANITARY |
| Diaphragm stroke | Full-Stroke |
| Check ball material | Hytrel® |
| Valve seat material | Stainless steel |
| Connection standard | TRI-CLAMP |
| Product family | HYGENIC/FDA |
| Power source | COMPRESSED AIR |
| Inlet / discharge orientation | CENTER HORIZONTAL BACK / CENTER HORIZONTAL FRONT |
| Maximum flow | 45.2 US gpm (approximately 171.1 L/min) |
|---|---|
| Maximum operating pressure | 120 psig (approximately 8.3 bar) |
| Maximum air supply pressure | 120 psig (approximately 8.3 bar) |
| Maximum solids diameter | 0.13 in (approximately 3.3 mm) |
| Listed dry suction lift | 25 ft (approximately 7.62 m) |
| Listed operating temperature | 32–175 °F (approximately 0.0–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 40 lb (approximately 18.14 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | No outer piston |
| Wetted O-rings / gaskets | HYTREL |
| Hardware material | Stainless steel |
| Muffler | Plastic |
| Air inlet connection | .25" FNPT |
| Special option code | 2070 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
Quote 02-12468 and P2/SZPPP/FWL/FS/SFS/2070, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
