Item: 04-10684 Model: P4/SSAPP/TEU/TF/STF/0014 Series: Pro-Flo Wetted material: Stainless steel Diaphragm material: PTFE / EPDM Nominal fluid port size: 1.5-inch Construction: Clamped Connection standard: BSPT
WILDEN / PRO-FLO SERIES

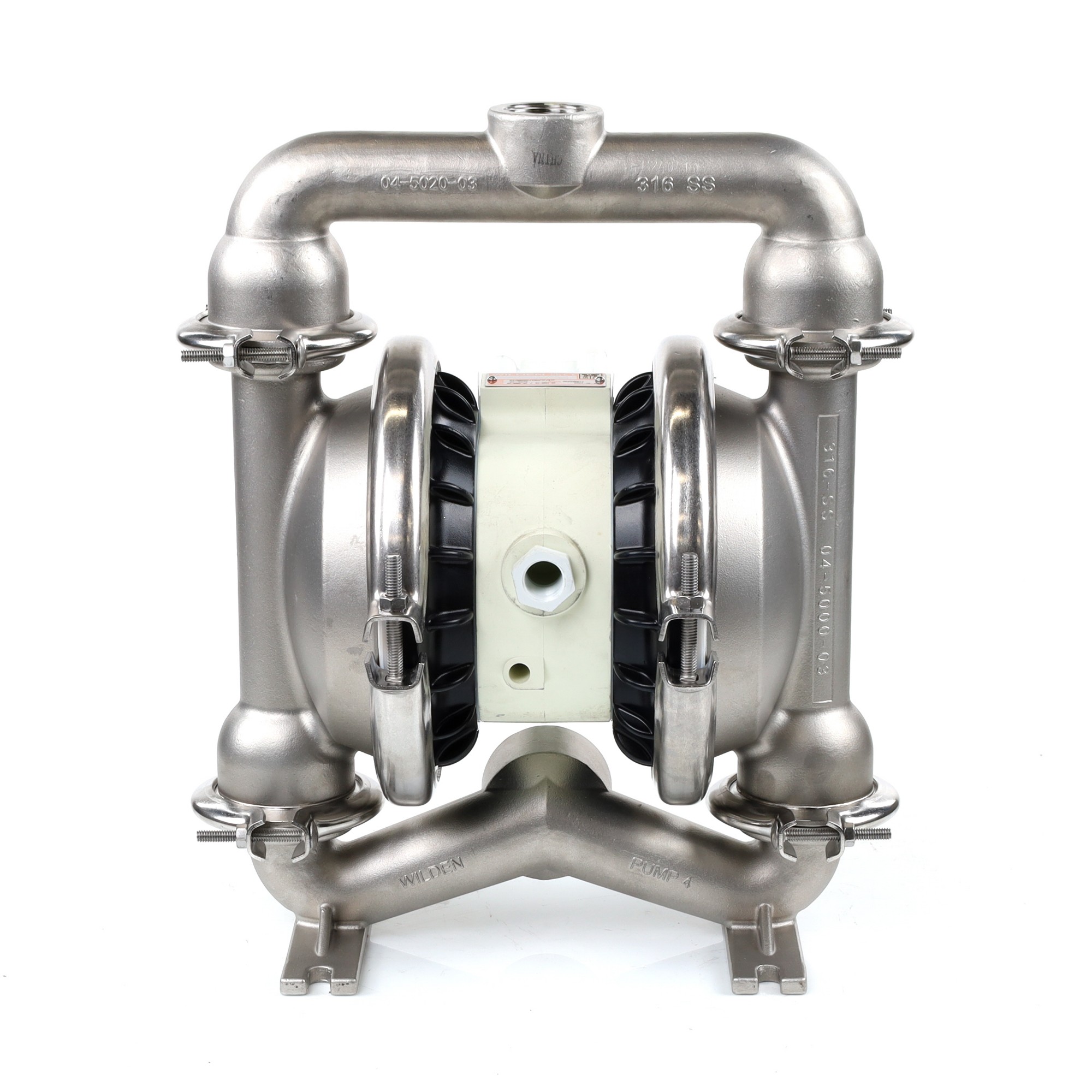

This 1.5-inch Pro-Flo air-operated double-diaphragm pump uses stainless steel wetted housing and PTFE / EPDM diaphragms. Its clamped construction is identified by the complete ordering code below. Fluid connections use the BSPT standard.
Complete model
P4/SSAPP/TEU/TF/STF/0014
FLUID PORT SIZE
1.5-inch BSPT
MAXIMUM FLOW
≈ 295.3 L/min
MAXIMUM PRESSURE
125 psig
| Brand / item number | WILDEN / 04-10684 |
|---|---|
| Pump series | Pro-Flo |
| Nominal fluid port size | 1.5 in |
| Construction | Clamped |
| Wetted housing | Stainless steel |
| Diaphragm material | PTFE / EPDM |
| Diaphragm design | TRADITIONAL |
| Diaphragm stroke | Reduced-Stroke |
| Check ball material | PTFE |
| Valve seat material | Stainless steel |
| Connection standard | BSPT |
| Power source | Compressed Air |
| Inlet / discharge orientation | Center Horizontal Back / Center Vertical |
| Maximum flow | 78 US gpm (approximately 295.3 L/min) |
|---|---|
| Maximum operating pressure | 125 psig (approximately 8.6 bar) |
| Maximum air supply pressure | 125 psig (approximately 8.6 bar) |
| Listed dry suction lift | 12 ft (approximately 3.66 m) |
| Listed wet suction lift | 28 ft (approximately 8.53 m) |
| Listed operating temperature | 40–175 °F (approximately 4.4–79.4 °C) |
| Self-priming | Yes |
| Listed shipping weight | 55 lb (approximately 24.95 kg) |
Maximum flow and maximum pressure are separate ratings. Check the duty point, fluid compatibility, temperature and suction conditions for the complete pump configuration.
| Air-side material | Polypropylene |
|---|---|
| Outer pistons | Stainless steel |
| Wetted O-rings / gaskets | PTFE |
| Hardware material | Stainless steel |
| Muffler | Aluminum |
| Special option code | 0014 |
Use the trace for this diaphragm configuration. Click to view the full-size image.
Use the trace for this diaphragm configuration. Click to view the full-size image.
AIR REPAIR KIT
Air distribution service kit matched to this 1.5-inch Pro-Flo P4 configuration. Confirm the complete pump code when ordering.
WET-END REPAIR KIT
Wetted-end service kit matched to this 1.5-inch clamped pump with PTFE / EPDM diaphragms. Match the installed elastomers and full ordering code.
Repair kits are ordered separately. Include the complete pump code and kit number in your enquiry.
Quote 04-10684 and P4/SSAPP/TEU/TF/STF/0014, together with quantity, fluid, operating temperature, required flow and discharge pressure. For replacement parts, include the component number and a clear pump nameplate photo.
